WoPu

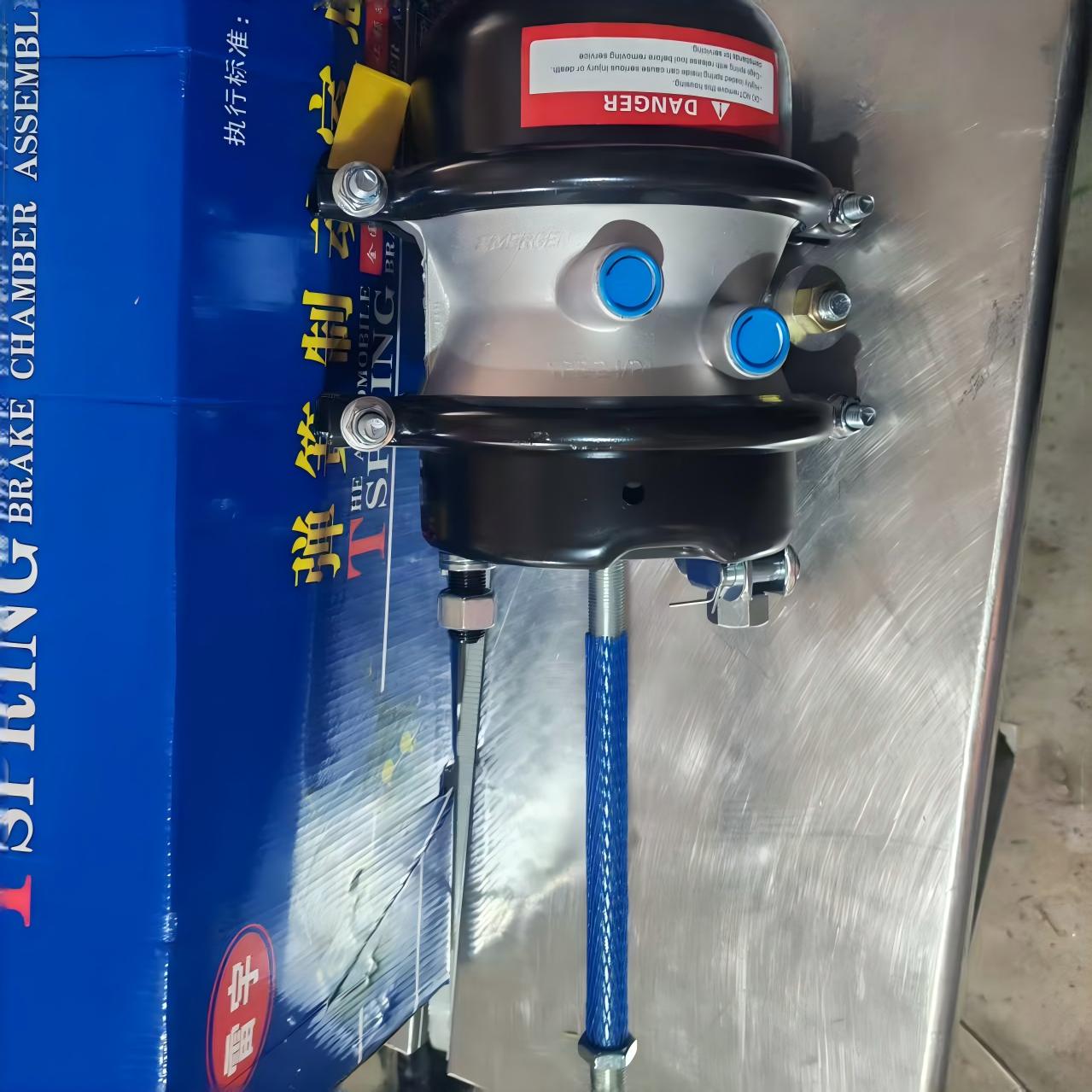

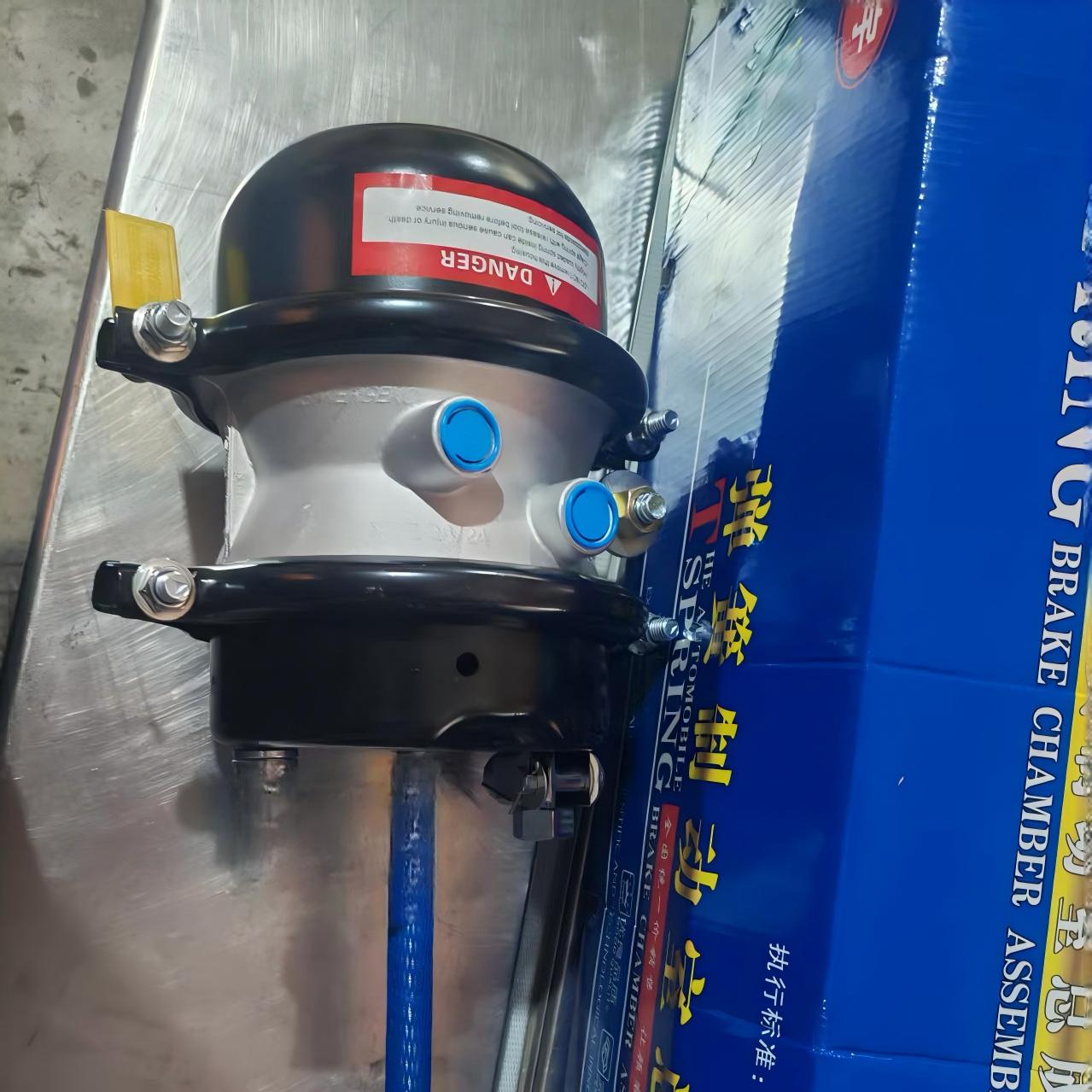

T2424DD Spring Brake Chamber 24/24 Double Diaphragm Air Brake Chamber for Heavy Duty Truck

  • T2424DD Spring Brake Chamber 24/24 Double Diaphragm Air Brake Chamber for Heavy Duty Truck
  • T2424DD Spring Brake Chamber 24/24 Double Diaphragm Air Brake Chamber for Heavy Duty Truck
  • T2424DD Spring Brake Chamber 24/24 Double Diaphragm Air Brake Chamber for Heavy Duty Truck

T2424DD Spring Brake Chamber 24/24 Double Diaphragm Air Brake Chamber for Heavy Duty Truck

✔ T24/24 Double Diaphragm Spring Brake Chamber
✔ Model: T2424DD
✔ Integrated Service Brake and Parking Brake Function
✔ Stable Braking Performance and Fast Response
✔ Suitable for Heavy Trucks, Trailers and Semi Trailers
✔ OEM Quality Replacement
✔ Worldwide Shipping Available
INQUIRY >
Contact Us >
Product Description

首

Product Introduction

The T2424DD Spring Brake Chamber is a heavy-duty double diaphragm air brake actuator designed for commercial trucks, semi-trailers and heavy-duty vehicles. It integrates service braking and parking braking functions into one compact assembly, ensuring reliable braking performance under demanding operating conditions.

Manufactured with high-strength steel housing and premium rubber diaphragms, the T2424DD brake chamber provides excellent durability, fast braking response and long service life, making it widely used in long-haul transportation, mining operations and heavy-duty logistics applications.

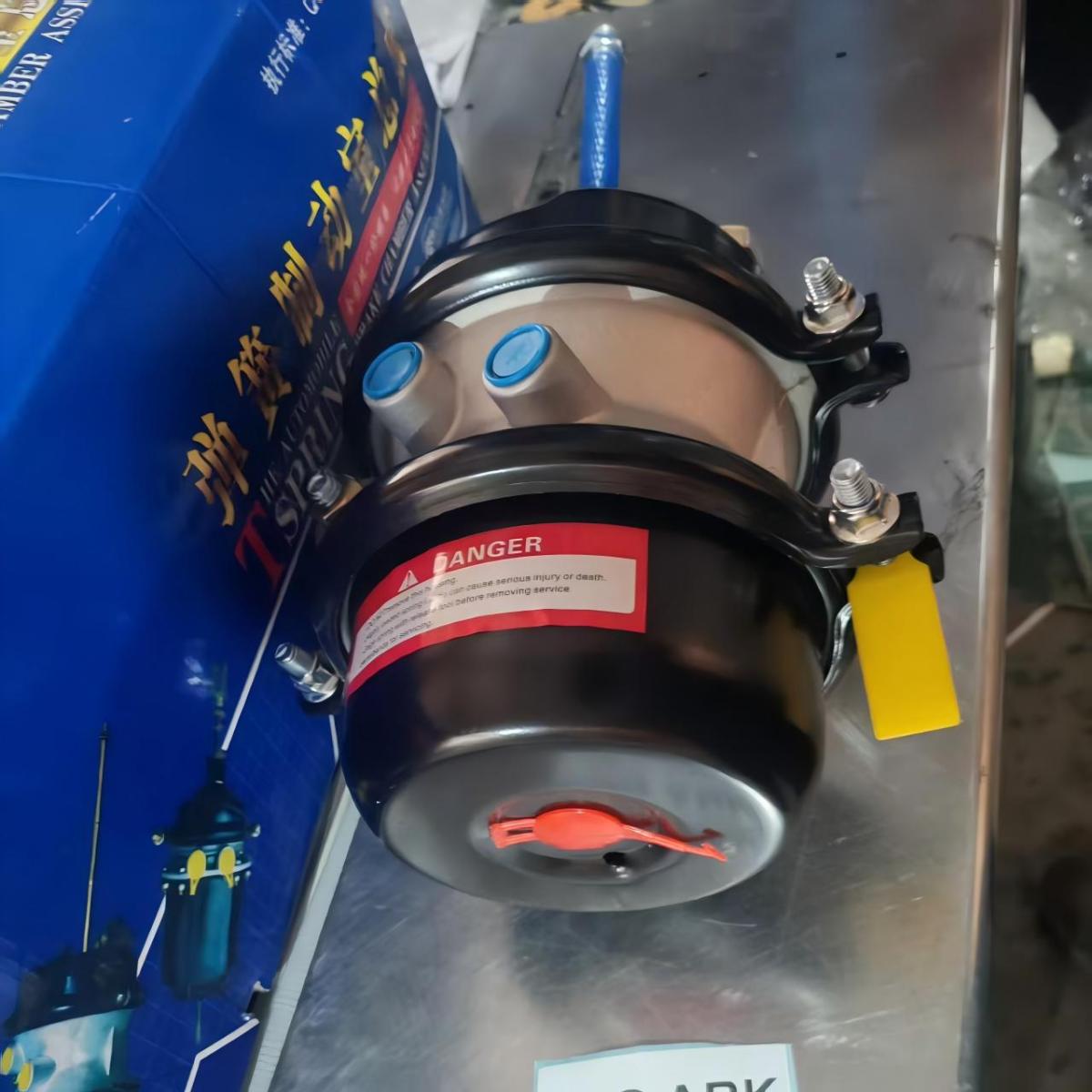

179-4

Technical Specifications

ItemSpecificationItemSpecification
Product NameSpring Brake ChamberModelT2424DD
Part NumberT2424DDOEM NumberT2424DD
Product TypeDouble Diaphragm Brake ChamberBrake Size24/24
Stroke64 mmWorking Pressure0.8-1.0 MPa
Air Port Thread3/8"-18 NPTFPush Rod Thread5/8"-18 UNF
ApplicationTruck Brake SystemWarranty12 Months

T2424DD typically uses a 64 mm stroke, 3/8" air inlet thread and double diaphragm structure, making it one of the most common 24/24 spring brake chamber specifications for heavy truck and trailer applications.

Vehicle Fitment

Vehicle BrandCompatible Models
SINOTRUK HOWOHOWO 6×4, HOWO 8×4
SHACMANF3000, X3000, H3000
FAW JIEFANGJ6P, JH6
DONGFENGTianlong, KL
FOTON AUMANETX, GTL
Trailer AxlesFUWA, BPW, YORK

Export Markets

MarketCoverage
Main Export MarketsAfrica, Middle East, Central Asia, Southeast Asia, South America, Eastern Europe

Packaging Information

ItemSpecification
Packaging TypeNeutral Package / Color Box / Carton Box
MOQ1 Piece
Customized PackagingAvailable

Payment & Shipping

Payment MethodsShipping Methods
T/TDHL
L/CFedEx
Western UnionUPS
PayPalAir Freight
Alibaba Trade AssuranceSea Freight
