202V09100-7806 Replacement Guide: What to Check Before Installing the Part

202V09100-7806 Replacement Guide: What to Check Before Installing the Part

Introduction: Before installing a 202V09100-7806 replacement part, aftermarket maintenance professionals should verify fitment, specifications, material quality, and connection points to prevent downtime or premature failure.

This guide explains the essential checks that support reliable performance in heavy-duty truck applications, helping workshops complete efficient repairs and protect long-term vehicle operation.

Why Identification Must Come Before Installation

Searches for 202V09100-7806 usually come from technicians who need to replace a failed component quickly without creating another repair issue through incorrect fitment.

The core task is not simply finding a part carrying the same reference number. It is confirming that the delivered component matches the vehicle, assembly, and operating conditions.

Heavy-duty truck parts may look similar across model families while differing in bore size, thread direction, mounting geometry, material treatment, or load capacity.

A wrong replacement can cause immediate installation difficulty, abnormal wear, steering instability, leaks, vibration, or an unexpected return of the original fault.

Before opening the package, compare the old part, vehicle identification details, repair order, and supplier documentation against the 202V09100-7806 reference.

This verification process is especially important for fleet maintenance teams, independent workshops, and distributors handling trucks from multiple manufacturers and production years.

Reliable replacement decisions reduce labor waste, prevent unplanned vehicle downtime, and protect the workshop from costly warranty disputes after the truck returns to service.

Confirm the Exact Vehicle and Assembly Application

Begin with the truck's VIN, model designation, axle configuration, engine or transmission variant, and production year rather than relying only on the vehicle badge.

HOWO, SHACMAN, Delong, Auman, Mercedes-Benz, and other heavy-duty truck platforms can use different assemblies within visually similar chassis configurations.

Check the original equipment number stamped on the removed component whenever possible. A clear physical marking provides stronger evidence than a handwritten workshop note.

If the old component is damaged or unreadable, identify the assembly location precisely, including left or right side, front or rear position, and axle series.

Ask whether previous repairs introduced non-original components. A vehicle may have received an upgraded axle, replacement steering unit, or modified bracket during earlier maintenance.

Use supplier catalog information as a starting point, but verify it against actual dimensions and vehicle-specific details before authorizing installation.

For 202V09100-7806 replacement planning, record all relevant identification data on the work order so future technicians can trace the selection decision.

Inspect Part Numbers Beyond the Main Reference

A part number is essential, but it rarely tells the complete compatibility story. Revision codes, suffixes, batch references, and manufacturer marks may also matter.

Compare every visible number on the old part with the replacement label. A small suffix difference can indicate a revised design or alternative mounting specification.

Some aftermarket suppliers list interchangeable references for convenience. Treat those cross-references carefully and confirm whether they apply to the exact truck configuration.

Ask for a technical drawing when uncertainty remains. Drawings can clarify hole spacing, shaft length, diameter tolerances, sealing surfaces, and thread specifications.

Do not assume that a newer revision automatically replaces an older design. Verify whether additional hardware, software calibration, or adjacent component changes are required.

When ordering in bulk, keep samples from the first received batch. Physical comparison protects maintenance teams before parts are distributed across several fleet vehicles.

Documenting label photographs and part markings also helps resolve claims efficiently if a fitment question appears after installation.

Measure the Critical Dimensions Before Fitting

Physical measurement is one of the most practical defenses against incorrect replacement. Use calibrated tools instead of judging compatibility by appearance alone.

Measure outside diameters, inside diameters, overall length, mounting center distances, keyway dimensions, thread pitch, and seating depth where applicable.

For steering, suspension, brake, and transmission components, even a minor dimensional difference can change load distribution or prevent correct alignment.

Inspect the mating surfaces on the vehicle as well. A correct 202V09100-7806 part cannot perform properly when the surrounding housing is distorted or worn.

Check whether the replacement requires bushes, seals, shims, bolts, retaining clips, grease fittings, or other associated items that are not included.

Never force a part into position to overcome a dimensional mismatch. Forced installation can damage threads, deform housings, and hide an incorrect application.

Where tolerances are specified, compare measurements with the manufacturer standard instead of relying on general workshop experience or approximate visual judgment.

Technicians should also assess whether corrosion, paint buildup, debris, or previous repair material is affecting the measured dimensions of the existing assembly.

Check Material Quality and Surface Condition

Material quality directly affects durability in heavy-duty service, particularly on vehicles exposed to high payloads, poor roads, dust, moisture, and repeated braking cycles.

Inspect castings and forged surfaces for cracks, porosity, sharp unfinished edges, inconsistent machining, or visible deformation before installation begins.

High-load mechanical parts should have appropriate heat treatment, hardness, and surface finishing for their intended function. Ask suppliers for material specifications when needed.

Look closely at threads, splines, bearing seats, seal lands, and precision bores. These areas often reveal manufacturing quality more clearly than exterior appearance.

Protective coatings should be even and suitable for the operating environment. Excessive paint on critical surfaces may interfere with seating, grounding, or measurement accuracy.

If the part includes rubber elements, inspect them for cracking, softness, odor, poor bonding, or irregular shape caused by unsuitable storage conditions.

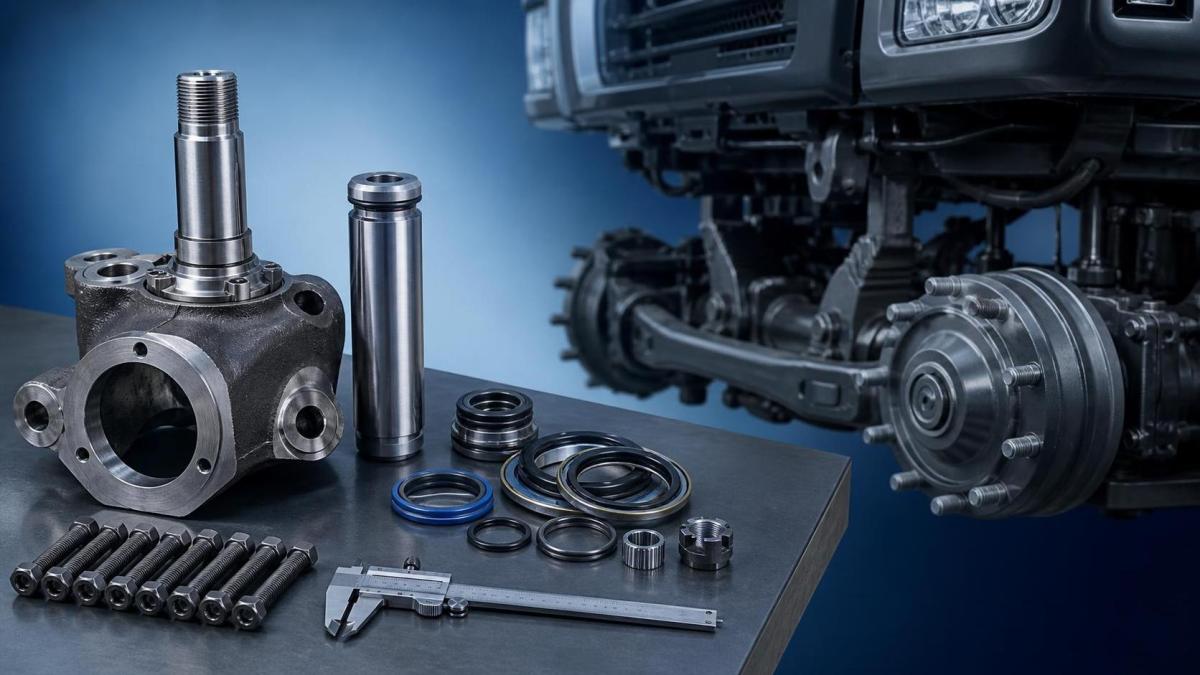

For repair work involving steering knuckles, bearings, or pivots, a properly matched Steering Knuckle Kingpin Repair Kit can simplify replacement of related wear items.

Do not install components with suspected transit damage. Bent edges, damaged packaging, moisture exposure, or impact marks may compromise performance before the truck operates.

Verify Connection Points and Included Hardware

Many replacement failures begin at connection points rather than inside the part itself. Examine every interface before committing to final assembly.

Confirm bolt-hole quantity, hole diameter, thread type, flange shape, locating pins, electrical terminals, hydraulic ports, and hose connection orientation.

For threaded connections, verify both pitch and engagement length. Similar metric sizes may start correctly but fail under load when threads do not fully match.

Check whether bolts must be replaced rather than reused. Stretch bolts, corroded fasteners, and damaged locking elements can reduce clamp force significantly.

Use the specified torque sequence and final torque value. Uneven tightening can distort covers, bearing caps, flanges, and steering-related components.

Where locking compounds, cotter pins, retaining rings, or tab washers are specified, install them as required. These items are functional safety controls.

For hydraulic or pneumatic parts, inspect port cleanliness and seal compatibility. Contamination or incorrect sealing material can quickly create leaks after commissioning.

Before reconnecting electrical components, compare connector keying, pin arrangement, voltage requirements, and harness routing to avoid damage from incorrect attachment.

Assess Related Components Before Replacing One Part

A failed component may be a symptom rather than the root cause. Replacing only the visible damaged part can lead to repeated failures.

Inspect neighboring bearings, seals, shafts, bushes, brackets, steering arms, brake components, and mounting surfaces according to the affected vehicle system.

For example, abnormal kingpin wear may result from poor lubrication, overloaded operation, damaged axle eyes, loose wheel bearings, or incorrect wheel alignment.

Similarly, repeated fastener failure may indicate misalignment, incorrect torque, poor mounting surface condition, or vibration transmitted from another assembly.

Measure wear against published limits whenever they are available. Replacing several connected wear items at once can reduce future labor and vehicle downtime.

Maintenance teams should communicate findings clearly to fleet managers, especially when a limited repair creates a predictable risk of near-term follow-up work.

When associated parts show compatible wear patterns, consider replacing the complete repair set rather than mixing new precision parts with severely worn interfaces.

Use a Controlled Installation Process

Clean the work area and mating surfaces before installation. Dirt, rust flakes, old gasket residue, and metal particles can affect alignment and sealing.

Follow the vehicle manufacturer's repair procedure whenever it is available. Supplier instructions should supplement, not replace, vehicle-specific service requirements.

Use correct lifting equipment for heavy components. Dropping or supporting a part incorrectly can damage precision surfaces or create a workplace safety hazard.

Lubricate only the points specified by the service procedure. Excess grease, incorrect oil, or contaminated lubricant can damage seals and attract abrasive particles.

Install seals in the correct orientation and avoid striking them directly with unsuitable tools. A damaged seal lip may not leak until after road operation.

After installing 202V09100-7806, rotate or move the relevant assembly manually where practical. Feel for binding, excessive free play, interference, or abnormal resistance.

Complete final tightening only after components are seated and aligned according to procedure. Premature torque application can lock an assembly into a stressed position.

Perform Functional Checks Before Releasing the Truck

Installation is not complete when the bolts are tightened. Functional verification is necessary before the vehicle returns to commercial duty.

Inspect for fluid leaks, air leaks, loose connections, warning indicators, irregular noises, and contact between moving components throughout the operating range.

For steering-related repairs, check steering travel, return behavior, wheel alignment, and tire clearance with the suspension at relevant positions.

For brake-system work, confirm pedal response, air pressure behavior, brake balance, and absence of leaks before conducting any controlled road test.

During the road test, listen for vibration, knocking, pulling, delayed response, or temperature rise. Stop immediately if the repaired system behaves abnormally.

After testing, recheck fasteners, fluid levels, grease points, and visible connection areas. Some issues become apparent only after the first load cycle.

Record installed part details, mileage, batch number, technician observations, and torque confirmation in the maintenance record for later traceability.

How to Source Replacement Parts with Lower Risk

Reliable sourcing begins with clear technical communication. Provide the supplier with part numbers, vehicle data, photographs, dimensions, and application details before ordering.

Choose suppliers that can explain fitment, material standards, production capability, packaging methods, and quality controls rather than simply confirming stock availability.

For fleets and distributors, consistent supply matters alongside initial quality. Batch variation can complicate maintenance planning and increase inspection time across incoming stock.

Ask about lead times, minimum order quantities, OEM or ODM options, and available documentation when planning regular purchases for heavy-duty truck service operations.

A supplier capable of supporting bulk orders should also maintain responsive technical communication when fitment questions arise during actual workshop installation.

Where steering system rebuilding is required, verify that every included item in a Steering Knuckle Kingpin Repair Kit matches the axle design and repair scope.

Incoming inspection should remain part of the workshop process, even when working with an established supplier. Quality assurance is strongest when both sides verify details.

Final Checklist Before Approving the Repair

Before releasing the vehicle, confirm the replacement reference, vehicle application, measurements, material condition, mounting interfaces, hardware, torque values, and functional test results.

Verify that all removed protective caps, temporary supports, shipping plugs, and old damaged components have been cleared from the repair area.

Ensure lubricants, fluids, and seals meet the system requirements. A correctly selected part can still fail when installed with incompatible service materials.

Confirm that the technician has recorded any unresolved wear in connected components. This gives the fleet a realistic basis for monitoring future maintenance needs.

The 202V09100-7806 replacement decision should be based on verified evidence, not on appearance, urgency, or an assumed cross-reference alone.

Careful fitment checks take less time than correcting a failed repair. They protect vehicle availability, improve workshop credibility, and support safer heavy-duty truck operation.
